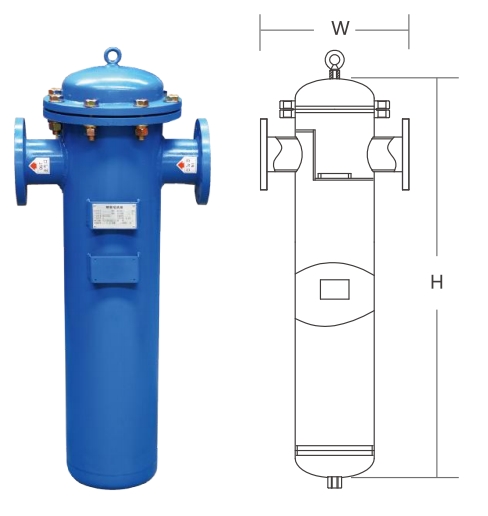

YFL series flange precision filter (1.0Mpa)

Category： Carbon Steel Compressed Air Filter

Flanged precision filter has many characteristics such as high pollution capacity,corrosion resistance,good temperature resistance,large flow,easy to operate, long service life,and no fiber shedding.

Inquire Now

Flanged precision filter has many characteristics such as high pollution capacity,corrosion resistance,good temperature resistance,large flow,easy to operate, long service life,and no fiber shedding.

Multi-layer diferent filtration materials are used to filter impurities in compressed airincluding borosilicate layer,glass fiber layer,activated carbon fiber layer,multi- layernon-woven layer and stainless steel mesh layer.Through multi-layer filtration,the high quality compressed air without ol and impurity is achieved.

Filter model	Flow Rate (Nm³/min)	Interface	Type of filterelement	Quantity	Height (mm)	Width (mm)	Barrel diameter
YFL*-20	15-20	DN65	E*-44	1	950	353	133
YFL*_25	25	DN80	E*-48	1	1110	353	133
YFL*_30	30	DN80	61040*	2	980	430	245
YFL*-40	40	DN100	61044*	2	980	430	245
YFL*-50	50	DN100	61044	3	1166	500	273
YFL*-60	60	DN125	61044	3	1166	500	273
YFL*-80	80	DN125	61044	4	1250	565	325
YFL*_100	100	DN150	61044*	5	1268	617	377
YFL*_120	120	DN150	61044	6	1304	726	426
YFL*_140	140	DN200	61044*	7	1390	780	480
YFL*_160	160	DN200	61044	8	1570	800	500
YFL*_180	180	DN200	61044	8	1570	800	500
YFL*-200	200	DN200	61048*	9	1570	800	500
YFL*-260	260	DN250	61048*	12	1570	860	560
YFL*-300	320	DN250	61048*	14	1760	970	650

Keywords: YFL series flange precision filter (1.0Mpa)
