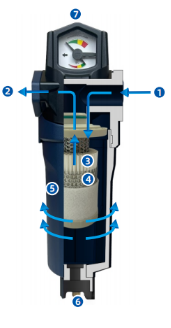

Product features
1. Compressed air inlet
2. Compressed air outlet
3. Folding filter cartridge technology, with a super large filtering surface, can improve efficiency and significantly reduce operating costs.
4. Stainless steel diamond mesh design has a large airflow area and low resistance
5. Aluminum alloy material, high-strength and high hardness material, internal and external surge treatment
6. Connecting components for inner and outer rows
7. Differential pressure gauge: Accurately indicate the differential pressure condition of the filter element and remind timely replacement of the filter element
ES series high-efficiency energy-saving precision filter(1.6Mpa)
Category： Aluminum Compressed Air Filter
The ES high-efficiency and energy-saving precision filters are key components used in various purity levels of compressed air that comply with the ISO 8573-1 standard. The ES filter can filter compressed air to the specified purity level with extremely low pressure drop.
The filter element adopts folding technology throughout the process, has a large filtering surface, can improve efficiency, significantly reduce operating costs, and is energy-saving and efficient.
ES series high-efficiency energy-saving precision filter(1.6Mpa)
The ES high-efficiency and energy-saving precision filters are key components used in various purity levels of compressed air that comply with the ISO 8573-1 standard. The ES filter can filter compressed air to the specified purity level with extremely low pressure drop. The filter element adopts folding technology throughout the process, has a large filtering surface, can improve efficiency, significantly reduce operating costs, and is energy-saving and efficient.
| Filter Model | Flow Rate | Interface c | Height（mm） | Width（mm） | Type of filter element | |
|---|---|---|---|---|---|---|
| （Nm³/min） | SCFM | G-BSPP | ||||
| ES-015 | 1.5 | 53 | 3/4'' 1/2" 1'' | 299.62 | 101 | EF-015 |
| ES-025 | 2.5 | 88 | 3/4'' 1/2" 1'' | 338.69 | 101 | EF-025 |
| ES-035 | 3.7 | 131 | 1'' 1.5'' | 364.86 | 120.83 | EF-035 |
| ES-045 | 5.8 | 205 | 1'' 1.5'' | 424.86 | 120.83 | EF-045 |
| ES-055 | 7.8 | 275 | 1'' 1.5'' | 489.86 | 120.83 | EF-055 |
| ES-065 | 11.5 | 406 | 2" | 536.86 | 153 | EF-065 |
| ES-075 | 15.6 | 551 | 2" | 591.86 | 153 | EF-075 |
| ES-085 | 20.8 | 735 | 2.5" | 681.5 | 186 | EF-085 |
| ES-095 | 25.5 | 901 | 2.5" | 731.5 | 186 | EF-095 |
Filtration Level
| Grade | Pictures | Kinds | Degreasing(ppm) | Initial differential pressure(bar) | Maximum particulate matter per cubic meter | ||
|---|---|---|---|---|---|---|---|
| 1-5micron | 0.5-1micron | 0.1-0.5micron | |||||
| Level C |  | Polymer filter | 3 | 0.02 | 一 | 一 | 一 |
| Level T |  | Coalescing filter | 0.1 | 0.06 | 一 | 一 | 一 |
| Level A |  | Coalescing filter | 0.01 | 0.07 | ≤100,000 | 一 | 一 |
| Level H |  | Activated carbon filter | 0.003 | 0.04 | ≤1,000 | ≤90,000 | 一 |
| Level F |  | Dust removal filter | 一 | 0.17 | ≤100 | ≤6,000 | ≤400,000 |
| Level FF | | Dust removal filter | 一 | 0.19 | ≤10 | ≤400 | ≤20,000 |
